  • Chemistry Laboratory Equipment Steel Made Walk-In Fume Cupboard For School,Hospital,Chemical Factory

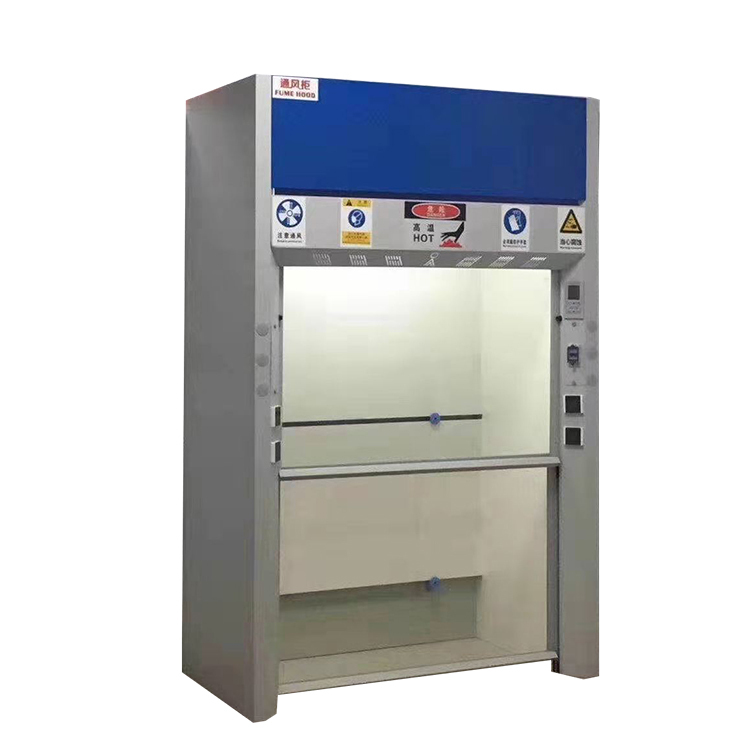

Chemistry Laboratory Equipment Steel Made Walk-In Fume Cupboard For School,Hospital,Chemical Factory

stars, based on 0reviews
$2000.00 piece
9999items available
Contact Us
Products Description
Walk In Fume Cupboard Specification 1.Cabinet: The actual thickness of the national standard board is 1.00mm. It is cut by fiber optic equipment imported from Germany, large-scale CNC automatic adjustment and bending forming, accuracy of 1/4mm, high-frequency welding, and smooth surface polishing. Epoxy resin powder sprayed by electric spraying. 2.Circuit: Chint brand switch, LCD control panel, LED light, 10A multi-function splash-proof socket. 3.Lining board: 5mm anti-fold special board. 4.Mobile sliding door: 5mm tempered glass
5.Standard configuration: sheet metal part; aluminum alloy glass window; lining board; circuit assembly and control panel; LED light; 4 10A waterproof sockets (optional 16A); steel wire rope counter weight. (Excluding air valve and fan).
External Size(W*D*H)
1200*850*2350mm
1500*850*2350mm
1800*850*2350mm
Internal Size(W*D*H)
950*650*1100mm
1250*650*1100mm
1550*650*1100mm
Main Material
1.0mm thickness cold-rolled steel plate
Exhaust Air Volume
1200~1800m3/h
1500~2000m3/h
1800~3000m3/h
Work Surface Height
None
Air Velocity
0.3~0.8m/s
Noise
≤60Db(A)
Sash
5mm thickness tempered glass
Worktop
None
Lighting
Full cover type LED lamp with 220V * 20W * 2
Operation Panel
Switch of Lighting,ON/OFF,Electric socket and Blower
Blower
Small and indoor type , Material: PP , Power: 300KW
Sink
None
Electric Socket
Multi-functional type,220V/10A
Working Door Opening
800mm~1000mm
Option
Water supply, gas supply
Chemistry Laboratory Equipment Steel Made Walk-In Fume Cupboard For School,Hospital,Chemical Factory
Chemistry Laboratory Equipment Steel Made Walk-In Fume Cupboard For School,Hospital,Chemical Factory

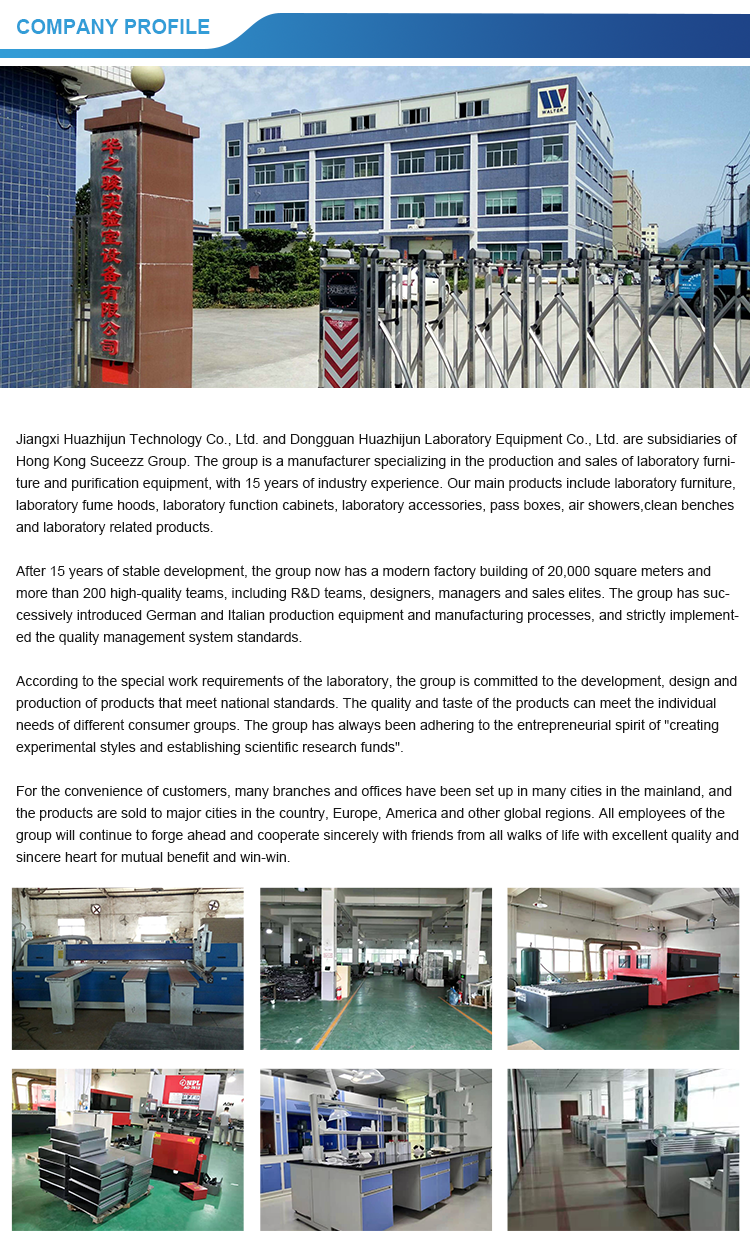

Company Profile
Chemistry Laboratory Equipment Steel Made Walk-In Fume Cupboard For School,Hospital,Chemical Factory
Our Advantages
Chemistry Laboratory Equipment Steel Made Walk-In Fume Cupboard For School,Hospital,Chemical Factory
Certifications
Chemistry Laboratory Equipment Steel Made Walk-In Fume Cupboard For School,Hospital,Chemical Factory
Packing&Shipping
Chemistry Laboratory Equipment Steel Made Walk-In Fume Cupboard For School,Hospital,Chemical Factory
FAQ
Chemistry Laboratory Equipment Steel Made Walk-In Fume Cupboard For School,Hospital,Chemical Factory
General Use:
Commercial Furniture
Type:
Laboratory Furniture
Mail packing:
N
Application:
Office Building, Hospital, School, Laboratory Furniture
Design Style:
Modern
Material:
metal
Place of Origin:
Guangdong, China
Brand Name:
SUCLAB
Model Number:
HZJ-WIFH01
Product name:
Walk-In Fume Hood
Worktop:
Phenolic Resin Worktop
Structure:
Walk-In
Function:
Lab Experimental Operation
Dimension:
1200/1500/1800*800*2350mm/Customized
Color:
White / Blue / Red
Power Supply:
AC220V/50Hz
Coating:
Epoxy Powder Coating
Packing:
Wooden Carton
Lead Time:
10-15 Workdays
