Pass Box Clean Room Laboratory Clean room Equipment Class 100 Cleanroom

stars, based on 0reviews

$450.00 piece

Model Number

Products Description

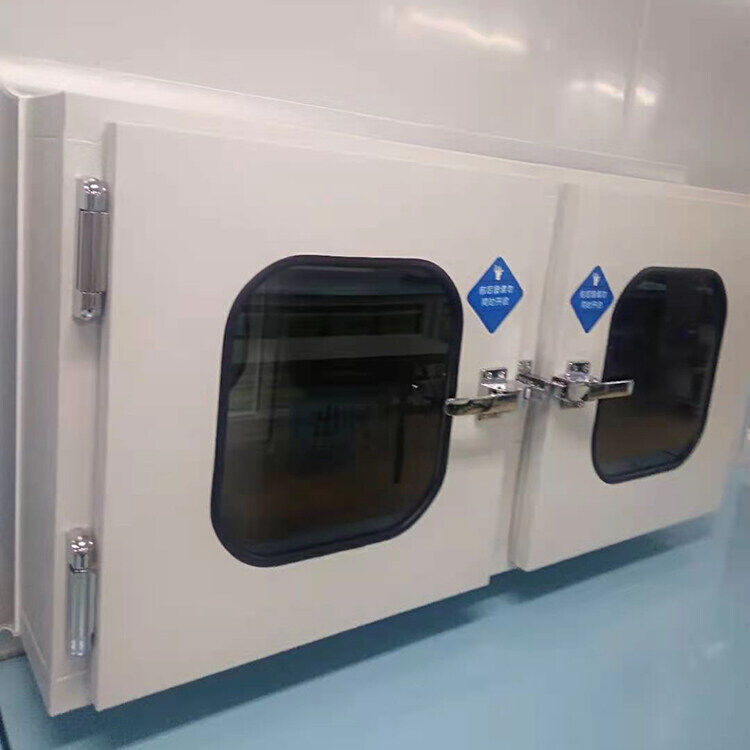

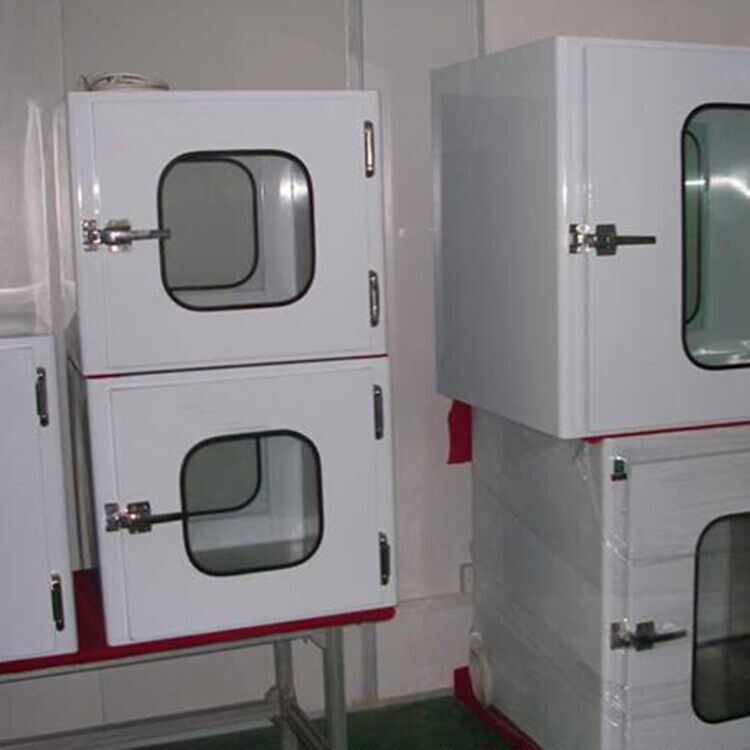

Pass Box Cleanroom Summery The pass box is an auxiliary device for the clean room. It is mainly used for the transfer of small items between the clean area and the clean area, between the clean area and the non-clean area, to reduce the number of times the clean room is opened, and to pollute the clean room. Reduce to a minimum. The pass box is made of stainless steel and is smooth and smooth. The double doors are interlocked to each other to effectively prevent cross-contamination. They are equipped with electronic or mechanical interlocking devices and equipped with ultraviolet germicidal lamps. Feature 1. Cabinet surface can be made of full stainless steel or cold plate,beautiful shape. 2. Work area is used sanding stainless steel plate,flat and smooth wear-resistant. 3. Both sides of the doors,mechanical interlocking or electronic interlocking device,so that both sides of the door can not be opened at the same in the shape can be. 4. Pass box is equipped with special seal to ensure air tightness.

Profile Size(WDH)(mm)	685500590	785600690	935750840
Within Size(WDH)(mm)	500500500	600600600	750750750
Material of Cabinet	Cold Plate Spray/Stainless Steel	Cold Plate Spray/Stainless Steel	Cold Plate Spray/Stainless Steel
Material of Wall	Stainless	Stainless	Stainless
Thickness(mm) of Plate	1.0/1.2	1.0/1.2	1.0/1.2
Transparent Laminated Glass Size(mm)	3503508	3953958	4804808
Power Supply	220V/50Hz	220V/50Hz	220V/50Hz

Instructions Pass box is managed according to the cleanliness level of the higher-level clean area connected to it. For example, the pass box connected between the spray booth and the filling room should be managed according to the requirements of the filling room. After work, the operator in the clean area is responsible for wiping the internal surfaces of the pass box and turning on the UV sterilization lamp for 30 minutes. 1.Material entering and leaving the clean area must be strictly separated from the flow channel and accessed by the material-specific channel of the production workshop. 2.When the material enters, the original auxiliary materials are unpacked or cleaned by the person in charge of the preparation process, and then sent to the temporary storage room of the workshop through the pass box; after the outer packaging is removed from the external storage, the inner packaging material is The pass box is sent to the inner bag. The workshop integrator handles the material handover with the person in charge of the preparation and internal packaging process. 3.When passing through the pass box, the rules for "opening and closing" of the inner and outer doors of the pass box must be strictly enforced, and the two doors cannot be opened at the same time. After opening the outer door, put the material into the door, then close the door, then open the inner door to take out the material, close the door, and so on. 4.When the materials in the clean area are delivered, the materials should be transported to the relevant material intermediate station and removed from the clean area according to the reverse procedure when the materials enter. 5.All semi-finished products are shipped from the clean area and are sent from the pass box to the external temporary storage room and transported to the outer packaging room via the logistics channel. 6.Materials and wastes that are highly susceptible to pollution should be transported from their dedicated transfer windows to non-clean areas. 7.After the material enters and exits, the site and the window of the intermediate station and the pass box should be cleaned in time, and the inner and outer access doors of the pass box should be closed to clean and disinfect.
